Flange Mount (FM)

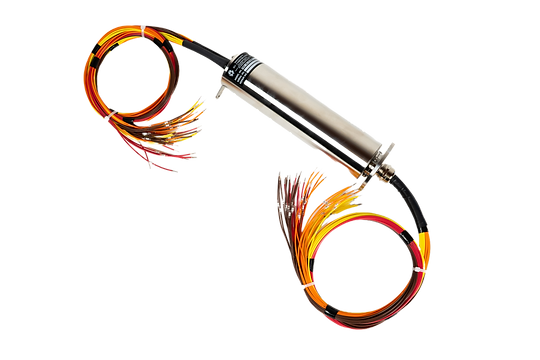

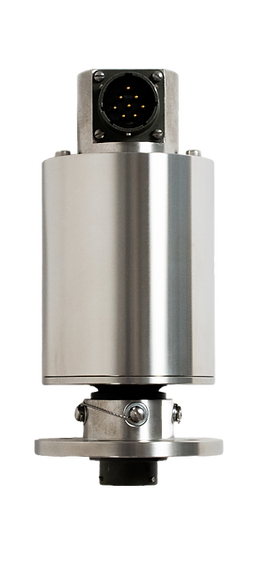

The FM model is IEC's most versatile product, designed to meet a wide range of applications. This sealed, NEMA 4X enclosure unit mounts securely on the end of a shaft via a flange, accommodating between 2 to 40 conductors. The FM models feature cantilevered designs, available with 2", 3.25", or 4" mounting flanges, depending on the size of the unit.

The stainless steel version can also be filled with synthetic oil to help prevent condensation. We highly recommend this modification if your application is in a humid environment.

Standard Specification

Operating Current

Operating Voltage

Electrical Noise

Leakage Resistance

Temperature Range

Enclosure

Leads

7.5A (option up to 32A)

1,000 Vrms

5μV, P-P, BW=10Hz–10kHz at 8.5 mA, 500rpm

10,000 MΩ (min)

-30°F to 175°F

Anodized Aluminum or Stainless Steel

20 AWG TFE covered wire, 3 ft long

Options

Bandwidth

Connectors

Wire

Wire Leads

Mounting

Subsea

DC to 250 MHz

To customer specifications

TFE coated wire, Coax, twisted pair, thermocouple, or customer specified wire/cable

3 ft standard length or to customer specs

To customer specifications *see below

Wet-mateable connectors

Mounting Options

The FM units can be securely mounted to your application utilizing our three standard mounting flanges. The available flange diameters include 2", 3.25", and 4". Due to the weight of the units, we offer the 2" flange exclusively for units with 2-8 conductors, 3.25" flange is available for units with 2-20 conductors, while the 4" flange can be utilized on any FM model. For detailed specifications, please refer to the Flange Mount Document, which outlines the standard flanges and their corresponding bolt hole patterns.

Download

Sample Applications Include:

Oceanographic Instrumentation
Seismic Acquisition Equipment
Oil Well Logging
Food Processing

Bottle/Can Fillers
Coil Tubing Reels
Defense Applications
Marine Winch and Towed Arrays
Packaging Machines
